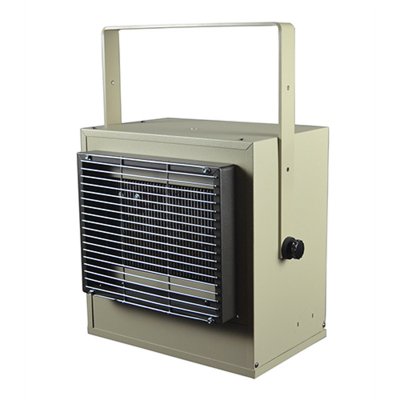

5000W 240V 3P Confined Space Plenum Rated Heater
TPI

5000W 240V 3P Confined Space Plenum Rated Heater

H3H5705T
Price $1,375.00 $880.00
SKU: H3H5705T
BTU /hr.: 12799
Fuel Type: Electric
Volts: 208/240
Color: Beige/Brown
Brand: TPI

5000W 240V 3P Confined Space Plenum Rated Heater

    Features :

  • Easily fits between joists for typical installation.
  • Zero clearance for wall and ceiling mounting as well as floor mounting with appropriate inlet and outlet clearances.
  • Bracket standard or can be mounted by 3/8" threaded rod (field supplied)
  • Automatic reset thermal limit for safety
  • 1 Phase model wattage field changeable from 1874 to 5000 Watts.
  • 24V control circuit on three phase models with hydraulic thermostat
  • Made in U.S.A
  • Conforms to ANSI/UL 1995
  • Certified to CAN/CSA C 22.2 No.236-11
Model Number H3H5705T
Agency Rating ETL-CUS
Wattage 208V 3750
Wattage 240V 5000
BTU 208V 12799@3750W
BTU 240V 17065@5000W
Voltage 208/240
Phase 3
3PH AMP 208V 10.4@3750W
3PH AMP 240V 12@5000W
Temperature Rise 208V/43F@3750W 240V/57F@5000W
Temperature Range 40-110 F
Air Throw 16
CFM 375/275
Color Beige/Brown
Weight (lbs) 32
