HW

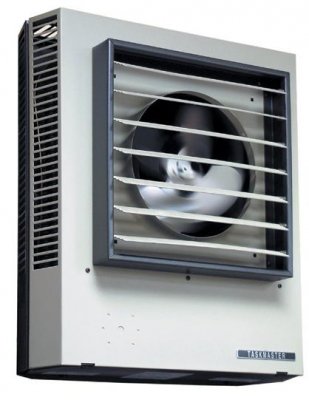

Fan Forced Heater
TPI

Fan Forced Heater

HF5605T
Price $1,276.00 $816.64
Please select from the Options below
Control Option
SKU: HF5605T
BTU /hr.: 17065 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Beige
Brand: TPI

Electric Heaters - TPI Multi-Watt ( Phase 1 ) Fan Forced Unit Heater - HF5605T - 1874-5000W / 208-240V

Presenting you the Multi Watt Fan Forced Electric Unit Heater with eight different wattage settings. Model HF5605T from TPI Heaters is a single phase unit with 208 or 240 volts and a maximum of 17065 BTUs. This unit includes a totally enclosed, single phase, permanently lubricated, thermally protected motor that is mounted with rubber insulators to minimize vibration and noise. It is equipped with an automatic reset thermal cutout to shut down the element and motor circuits if unsafe operating temperatures are exceeded. The heater also has a heavy-duty hydraulic thermostat and an optional disconnect switch for field installation. Available with a three position-mounting bracket for wall, ceiling or workbench, these heaters can be mounted for horizontal or vertical discharge. The image below is the backside of the heater.

Multi-Watt Fan Forced Heater HF5605T - Specifications
ModelHF5605T
TypeElectric
Volts240 V208 V
Watts5000, 4165, 3332 and 25003750, 3123, 2500 and 1874
BTUs17065, 14215, 11365 and 853312798, 10659, 8553 and 6396
Amps20.8, 17.4, 13.9 and 10.418.0, 15.0, 12.0 and 9.0
Temp Rise (Degree F)57, 48, 38 and 2943, 36, 29 and 21
Phase1
Air Throw16'
CFM275
ColorStainless Steel
Weight32 lbs
Dimension15-9/16"H x 14"W x 13-5/16"D
UPC686334707282

TPI Multi-Watt Fan Forced Heater HF5605T Features:

  • Horizontal or Vertical Discharge
  • Heavy gauge welded steel cabinet with powder coated finish and control compartment with a hinged and latched access door
  • Block finned steel element
  • Automatic resetting over-heat limit control
  • Totally enclosed, single phase, permanently lubricated, thermally protected motor, mounted with rubber insulators to minimize vibration and noise
  • Individually adjustable louvers
  • Hydraulic action thermostat with an adjustable temperature range 50 to 90 or remote and wall thermostat may be used
  • Heavy duty bracket standard on all models, allows mounting to wall or ceiling - Minimum mounting height - 6 feet
  • Field Installed options - disconnect switch
  • 24V control standard on 3 phase units, optional on 1 phase units
  • UL / CUL Listed
  • Approved for residential applications
