Fan Forced Unit Heater
TPI

Fan Forced Unit Heater

F2F5110CA1L
Price $2,053.00 $1,313.92
Please select from the Options below
Control Option
SKU: F2F5110CA1L
BTU /hr.: 33800 BTU
Fuel Type: Electric
Volts: 208 V
Color: Gray
Brand: TPI
Resources

Fan Forced Suspended Unit Heater TPI F2F5110CA1L Resources:

Fan Forced Suspended Unit Heater TPI F2F5110CA1L Specification

Electric Forced Air Heaters - 9.9KW 5100 Series Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater - TPI F2F5110CA1L - 33.8 BTU/Hr

TPI presents the perfect unit for convenient and safe heat for your place. 9.9KW 5100 Series Horizontal/Vertical Discharge Fan Forced Suspended Unit Heater model F2F5110CA1L produces an amazing output of 33.8 BTU/Hr. This units is ideal for applications up to 6000 feet. It is designed using best quality 18 ga. steel cabinet with powder coated finish.

Fan Forced Suspended Unit Heater TPI F2F5110CA1L Specifications
UPC686334645263
Power9.9 KW
BTU / Hr33.8
VOLTAGE208 V
PHASE1 / 3
AMPS47.8/27.4
Control Voltage24
Temperature Rise45 F
Air Throw22'
CFM700
Recommended Mounting Height (Horizontal)10'
Recommended Mounting Height (Vertical)14'
Dimensions24-1/3"H x 21-1/2"W x 6-1/2"D
Weight55 Lbs.

Fan Forced Suspended Unit Heater TPI F2F5110CA1L Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment housing a master terminal board with a hinged and latched access door, simplifying wiring, installation & maintenance

HEATING ELEMENT:

  • Spiral fin steel element with continuously brazed steel fins formed to allow side draw through air flow

OVERHEAT PROTECTION:

  • 3.3 - 50 KW units come equipped with automatic reset type limit and 60 - 100 KW units come equipped with manual reset type limit to de-energize the heater should an over-temperature situation occur.

FAN and MOTOR:

  • Totally enclosed, 1-speed, 1-phase, permanently lubricated, thermally protected motors with unit bearings on 3 KW - 20 KW models Totally enclosed, 2-speed, 1-phase, permanently lubricated, thermally protected motors with sleeve bearings on 25 KW - 50 KW models; 60 -100 KW have 1 speed motors, ball bearing, thermally protected.
  • Fan over-ride purges unit of residual heat at shutdown

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow up to 15 degree from straight horizontal
  • Optional diffusers available for down flow (vertical discharge) applications

TEMPERATURE CONTROLS:

  • Optional low voltage and line voltage thermostats available with an adjustable temperature range of 50 degree -90 degree F
  • Units with model numbers ending in CA1 are factory wired for low voltage controls
  • 25 KW through 50 KW units are designed for two stage heating operation, 60 - 70KW units designed for up to three stage and 80 - 100 KW units up to four stage

INSTALLATION:

  • Unit Heaters can be mounted for horizontal or vertical discharge
  • 5100 series suggested for applications up to 6000 feet; for applications up to or above 6000 feet see UH series.

FIELD INSTALLED OPTIONS:

  • In-Built or wall mounted temperature control thermostats - low or line voltage
  • Summer fan switch to operate the fan only.
  • Power disconnect switch
  • 60-100KW units can be multiple stage when used with optional SC5100 and C1025 stat
  • Heat stratification thermostat
Accessories
Anemostat Diffuser
TPI
Price $651.00 $416.64
Radial Diffuser
TPI
Price $721.00 $461.44
Wall / Ceiling Mounting Bracket
TPI
Price $203.00 $129.92
Wall / Ceiling Mounting Bracket
TPI
Price $92.00 $58.88
Vertical Mount Bracket
TPI
Price $420.00 $268.80
Thermostat
TPI
Price $309.00 $197.76
Wall Thermostat
TPI
Price $678.00 $433.92
Thermostat
TPI
Price $210.00 $134.40
Line Volt Summer Fan Switch
TPI
Price $121.00 $77.44
Wall Thermostat
TPI
Price $341.00 $218.24
Stratification Thermostat
TPI
Price $226.00 $144.64
Related ITems
Horizontal / Vertical Fan Forced Heater
TPI
SKU: HF2B5105N
BTU /HR.: 12800 - 17100 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: Ivory
Horizontal Fan Forced Heater
TPI
SKU: P3PUH40CA1
BTU /HR.: 136500 BTU
Fuel Type: Electric
Volts: 480 V
Color: Beige

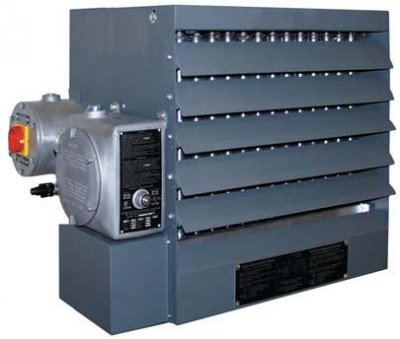

Hazardous Location Fan Forced Unit Heater
