Fan Forced Wall Heater
TPI

Fan Forced Wall Heater

F3317TSRPW
Price $786.00 $503.04
Please select from the Options below
Factory Installed Controls
SKU: F3317TSRPW
BTU /hr.: 16380 BTU
Fuel Type: Electric
Volts: 208 V
Color: White
Brand: TPI
Resources

Fan Forced Wall Heater TPI F3317TSRPW Resources:

Fan Forced Wall Heater TPI F3317TSRPW Specification

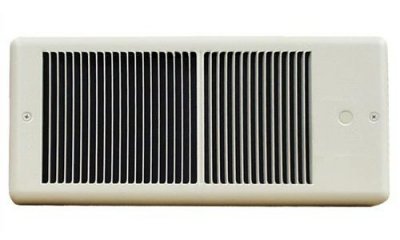

Fan Forced Wall Heaters - 4800W Fan Forced Wall Heater w/ summer switch & SP Thermostat - TPI F3317TSRPW - 16380 BTU

Get easy and reliable operation, with this ultimate 4800W Fan Forced Wall Heater available with summer switch & Single Pole Thermostat. This Powder coated 18 ga. steel front heater works at 208 Volts. It features with vane axial fan blade that makes it an efficent unit.

Fan Forced Wall Heater TPI F3317TSRPW Specifications
UPC686334384032
Max BTU's16380
Wattage4800
Volts208
Max. Amps23
Dimensions14-3/16"W x 19-15/16" H x 4" D

Fan Forced Wall Heater TPI F3317TSRPW Features:

  • Powder coated 18 ga. steel front
  • Automatic reset thermal limit
  • Steel block fin element
  • Vane axial fan blade - 600 RPM / 175 CFM
  • Weight 22 lbs.
  • Rough in dimensions - 14 3/16" wide x 19 15/16" high x 4" deep
  • Grill dimensions - 15 3/8" wide x 20 9/64" high
  • Units with dual wattage, factory wired to highest wattage.
  • Watts selectable at time of installation. Factory wired to higher wattage.
