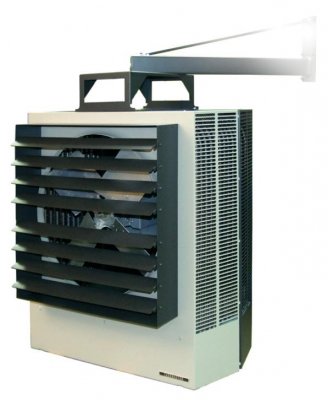

Horizontal Fan Forced Heater
TPI

Horizontal Fan Forced Heater

H3HUH25CA1
Price $5,877.00 $3,761.28
Please select from the Options below
Factory Installed Controls
SKU: H3HUH25CA1
BTU /hr.: 85300 BTU
Fuel Type: Electric
Volts: 240 V
Color: Beige
Brand: TPI
Resources

TPI Horizontal Fan Forced Heater H3HUH25CA1 Resources:

TPI Horizontal Fan Forced Heater H3HUH25CA1 Specification

Forced Air HeatersTPI 25 KW, 240V Fan Forced Horizontal Discharge Unit Heater - H3HUH25CA1

We bring you Fan Forced Horizontal Discharge Unit Heater, TPI H3HUH25CA1, with 25 KW of power and 85300 BTU. This remarkable unit is a perfect blend of highest quality, exceptional performance and value. The fan assembly is enclosed by a heavy gauge, close spaced, chrome plated wire guard. Circular copper clad steel element with continuously brazed steel fins is formed to match the air delivery pattern of the fan blade.

Fan Forced Horizontal Discharge Unit Heater - TPI H3HUH25CA1 Specifications
Wattage25 KW
BTU85300
Voltage240
Phase3
Ampere60.2
Control Voltage24
Temperature Rise58 F
Air Throw56'
CFM1350
Required Mounting Height13'
Dimensions17"L x 17"W x 24"H
Weight55 Lbs.
UPC686334688345

Fan Forced Horizontal Discharge Unit Heater - TPI H3HUH25CA1 Features:

CONSTRUCTION:

  • 18 ga. steel cabinet with powder coated finish and control compartment with a hinged and latched access door, simplifying wiring installation & maintenance

HEATING ELEMENT:

  • Circular copper clad steel element with continuously brazed steel fins formed to match the air delivery pattern of the fan blade

OVERHEAT PROTECTION:

  • All units come equipped with automatic reset type limit controls to de-energize the

FAN and MOTOR:

  • Heater should an over-temperature situation occur. Totally enclosed, single phase, permanently lubricated, thermally protected motors with unit bearings and mounted with rubber insulators to minimize vibration and noise
  • Fan assembly enclosed by a heavy gauge, close spaced, chrome plated wire guard.

LOUVER ASSEMBLY:

  • Louvers are individually adjustable for directional control of air flow and the louver assembly can be repositioned in the field from down air flow to right or left directional air flow.

TEMPERATURE CONTROLS:

  • 20 KW through 48 KW units and all 480V have built in 24 volt transformer for low voltage remote thermostat application

INSTALLATION:

  • UH Series may be mounted at a maximum of 45 degrees off of horizontal
  • model has mounting above 5/16" threaded rod
  • Optional wall / ceiling mounting brackets available for all units
  • Suitable for applications up to 13, 000 feet

FACTORY INSTALLED OPTIONS:

  • Summer fan switch to operate the fan only.
  • Fan Delay Switch to purge all residual heat from the unit after the heating element has cycled off
  • Powder coated Epoxy finish is available
  • Disconnect switch
