HW
Packaged Duct Heater
TPI

Packaged Duct Heater

4PD15121823
Price $1,821.00 $1,165.44
SKU: 4PD15121823
Fuel Type: Electric
Volts: 480 V
Color: Galvanized Steel
Brand: TPI
Resources

TPI Packaged Duct Heater 4PD15121823 Resources:

TPI Packaged Duct Heater 4PD15121823 Specifications

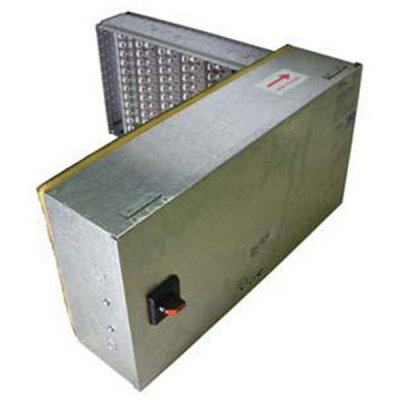

Presenting 3 phase 15 KW package duct heater that operates at 480 V with two control steps. Model 4PD15121823 is manufactured by reputed brand TPI. This unit has galvanized steel element rack and compartment. It has door interlock disconnect switch and differential pressure fan inter-lock switch. The heater also includes a 24 V step down control transformer.

TPI Packaged Duct Heater 4PD15121823 Specifications
Wattage15000 W
Voltage480 V
Phase3
Duct Height12" A
Duct Width18" W
Dimensions9-1/8" C x 6-1/2" E x 26" M
Amps18.1
Control Steps2
Weight34 Lbs.
UPC686334617277

TPI Packaged Duct Heater 4PD15121823 Features:

  • Galvanized Steel Element Rack - Always 1" shorter than duct height and 1/2" shorter than duct width to allow insertion clearance
  • Galvanized Steel Compartment with 1/2" fiberglass Insulation & Hinged Cover
  • Door Interlock Disconnect Switch
  • Primary Automatic Reset Temp Limiting Control
  • Load Carrying Secondary over Temperature Protective Device(s)
  • Definite Purpose Magnetic Contactor(s)
  • Differential Pressure Fan Inter-lock Switch
  • Step Down Control Transformer / 24 volt
  • Permanently Attached Wiring Diagram on inside of Terminal Compartment Cover
  • ETL Listed
