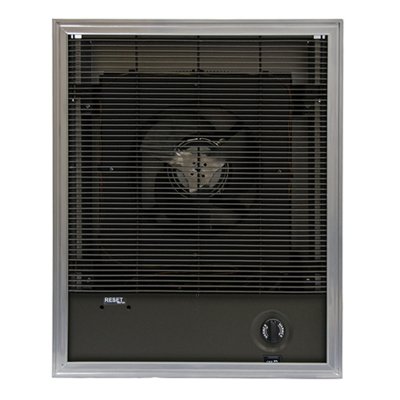

2000W 208V 3 Phase Heavy-Duty Fan Forced Wall Heater & back can
TPI

2000W 208V 3 Phase Heavy-Duty Fan Forced Wall Heater & back can

J3422T
Price $2,039.00 $1,304.96
Please select from the Options below
Field Installed Accessories
SKU: J3422T
BTU /hr.: 6826
Fuel Type: Electric
Volts: 208
Brand: TPI

2000W 208V 3 Phase Heavy-Duty Fan Forced Wall Heater & back can

    Features :

  • Powder coated bar stock steel tamper proof grille, with extruded Aluminum (or - 3420 model - alternate silver painted 18 ga. steel frame) and 16 gauge housing
  • In-built tamper proof thermostat SEE MODEL SPECIFICATIONS.
  • Manual reset thermal limit switch
  • Corrosion resistant steel tubular element with brazed steel fins
  • Permanently lubricated, unit bearing, shaded pole motor with impedance protection
  • Propeller type fan blade: 1400 RPM motor; 245 CFM
  • Factory installed options: Contactor 24V (3420/AFC & 3450/AFH series) | Control transformer 24V (3450 series)
  • Wall box included with heater
  • SERIES 3420/AFC - ROUGH-IN DIMENSIONS: 19 5/8" H x 14 7/16" W x 4 1/8" D GRILL DIMENSIONS: 21 1/2" H x 17 1/2" W
  • SERIES 3450/AFH - ROUGH-IN DIMENSIONS: 23 5/16" H x 14 7/16" W x 4 1/8" D GRILL DIMENSIONS: 25" H x 17 1/2" W
  • Made in U.S.A.
Model Number J3422T
Agency Rating ETL-CUS
Wattage 2000
BTU 6826
Voltage 208
Phase 3
Amp 5.6
CFM 245
Weight (lbs) 41
