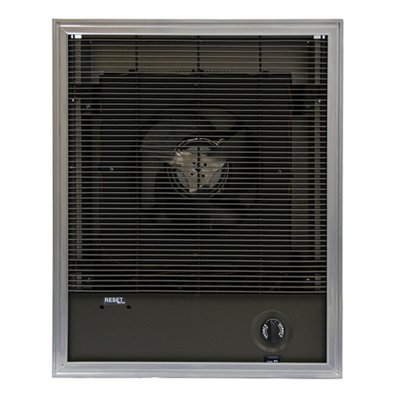

2000W 240V 3 Phase Heavy-Duty Fan Forced Wall Heater & back can

K3422T

Price $2,039.00 $1,304.96

Please select from the Options below
Field Installed Accessories

QTY

SKU: K3422T
BTU /hr.: 6826
Fuel Type: Electric
Volts: 240
Brand: TPI

Features :

Powder coated bar stock steel tamper proof grille, with extruded Aluminum (or - 3420 model - alternate silver painted 18 ga. steel frame) and 16 gauge housing
In-built tamper proof thermostat SEE MODEL SPECIFICATIONS.
Manual reset thermal limit switch
Corrosion resistant steel tubular element with brazed steel fins
Permanently lubricated, unit bearing, shaded pole motor with impedance protection
Propeller type fan blade: 1400 RPM motor; 245 CFM
Factory installed options: Contactor 24V (3420/AFC & 3450/AFH series) | Control transformer 24V (3450 series)
Wall box included with heater
SERIES 3420/AFC - ROUGH-IN DIMENSIONS: 19 5/8" H x 14 7/16" W x 4 1/8" D GRILL DIMENSIONS: 21 1/2" H x 17 1/2" W
SERIES 3450/AFH - ROUGH-IN DIMENSIONS: 23 5/16" H x 14 7/16" W x 4 1/8" D GRILL DIMENSIONS: 25" H x 17 1/2" W
Made in U.S.A.
