HW

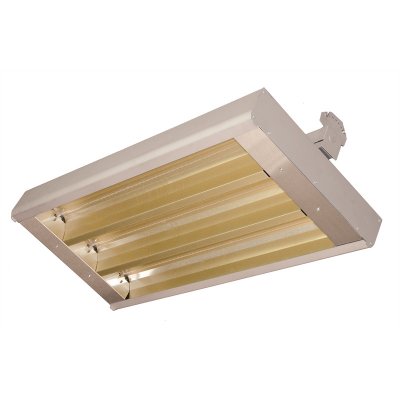

3 Lamp 8MM 7.5KW 480V 90Sym Mul-T-Mount Electric Infrared Heater Extruded Aluminum Housing w/Amber Gray Sleeve
Fostoria

3 Lamp 8MM 7.5KW 480V 90Sym Mul-T-Mount Electric Infrared Heater Extruded Aluminum Housing w/Amber Gray Sleeve

34390THA480V
Price $2,545.00 $1,628.80
SKU: 34390THA480V
BTU /hr.: 25298
Fuel Type: Electric
Volts: 480
Color: Extruded Aluminum Housing
Brand: Fostoria

3 Lamp 8MM 7.5KW 480V 90Sym Mul-T-Mount Electric Infrared Heater Extruded Aluminum Housing w/Amber Gray Sleeve

    Features :

  • ETL C/US listed for suspended, totally exposed outdoor and indoor spot comfort heating applications, including exterior snow/ice control applications
  • Clear quartz lamp heating elements, offered in both 2-lamp and 3-lamp heaters that operate on 208, 240, or 480 volt
  • Gold anodized one-piece reflector offered in 30°, 60°, or 90° symmetrical patterns for various distribution of infrared heat
  • 6063 extruded aluminum housing, with a painted powder coated nickel gray finish
  • Housing is extremely durable and attractively designed for commercial applications
  • All 3-lamp heaters wire for either single or three-phase wiring.
  • 2-lamp heaters wire for single-phase operation
  • Includes surface mounting brackets & glare reducing sleeves to eliminate 94% of the quartz lamp lumen output
  • Made in the USA
Model Number 343-90-THA-480V
Agency Rating ETL-CUS
KW 7.5
BTU 25298
Voltage 480
Phase 1 or 3
Reflective Pattern 90 Deg Symmetrical
Lamp Included Yes
Lamp Type Quartz
Lamp Number 3
Lamp PN 4913502
Length 33
Width 21.5
Height 11
Mounting Height Indoor Consult Factory
Weight (lbs) 33
