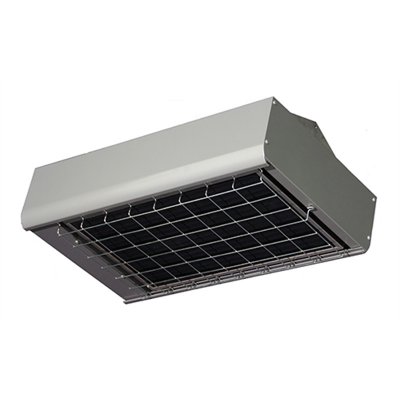

3.15 KW 277V Heavy Duty Overhead Flat Panel Emitter

• Housing & Construction: Extruded 6063 aluminum housing with protective grill. Powder coat silver finish for excellent durability and attractive appearance in commercial applications. ETL C/US listed for indoor, dry environments. Made in USA.
• Elements: Heavy duty flat panel emitter. Available wattages in 1450, 3150, 4300 and 9500 Watts per element. Available in standard voltages from 120 to 600 Volts.
• Controls: Flat panel emitter heaters are not manufactured with any control device on the unit. All controls and accessories should be specified as remote mounted. Please consult the technical sales department of factory for help in determining applicable controls. Please follow installation instructions that accompany each heater.
• Accessories: Power contactor panels. Consult Factory

• KW 1.4, 8' - 10' Recommended Mounting Height
• KW 3.1, 8' - 12' Recommended Mounting Height
• KW 4.3, 10' - 14' Recommended Mounting Height
• KW 9.5, 12' - 16' Recommended Mounting Height
• Mounting Clearances (All Models): 24" from ceiling, 36" from vertical surface & from another heater (4" when using optional mounting bracket), 72" from face of heater to combustible surface.

Features :

• ETL C/US Listed for suspended high-bay indoor or protected outdoor applications
• Designed for spot / zone or total area heating applications
• Heating elements included (Heavy Duty Single Flat Panel Emitter)
• Medium wave emitter operates at 78.5% radiant efficiency - with a 25,000 hour life expectancy
• Extruded aluminum housing with a nickel-gray finish, providing a 60° symmetrical heat pattern
• Electrical enclosure included for direct wire installation
• Single or three-phase wiring configurations
• “L" brackets included on the top of the heating housing for chain suspension, wall mounting, or ceiling mounting options
• Units can be surface mounted, semi-recessed, or fully-recessed
• Zinc plated heavy-gauge safety grills included for all models
• Optional wall mounting bracket sold separately
• Shipped fully assembled and made in U.S.A.
