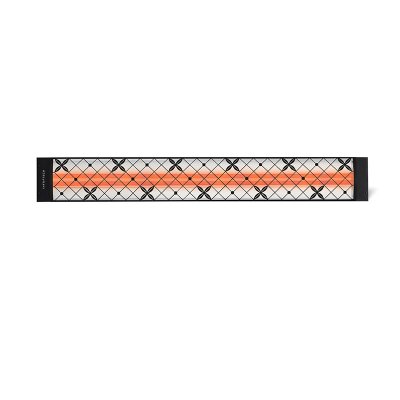

39" 5000 Watt 240 Volt Traditional MOTIF Collection Heater - Black
Infratech Outdoor Heaters & Heating
Infratech redesigned dual MOTIF Collection Heaters an excellent choice for most basic installations that require cost-effective controls. CD-Series heaters are available in a variety of wattages and voltages ranging from 4,000 to 6,000 watts, and 208 to 480 volts. These classic heaters feature sleek profiles, short standoffs, low clearance heights, and a traditional-inspired decorative fascia. The TRADITIONAL fascia has been designed with America's heritage in mind. It is inspired by Colonial, Victorian, Farmhouse, and Transitional architecture to complement structures with traditional shapes and forms.
Stainless Steel Dual Quartz Heater In Powder-Coated Black Finish
Our MOTIF Collection CD-Series heaters are energy efficient, with wide, polished reflectors that provide comfortable and uniform heat coverage. For residential or commercial use, this CD5024BL4 model is made of 304 commercial-grade stainless steel and powder-coated in black.
Infratech dual quartz elements provide pleasant medium wave heat. Competing heaters utilize shortwave quartz elements that produce more intense heat and emit a very bright, harsh-colored light. By contrast, Infratech medium wave elements effectively heat your space, while providing a soft, warm glow that is practically unnoticeable.
| Infratech Heater CD5024BL4 - Specifications |
|---|
| Model | CD5024BL4 |
|---|
| Length | 39" |
|---|
| BTUs | 17060 BTU |
|---|
| Wattage | 5000 Watt |
|---|
| Voltage | 240 V |
|---|
| Color | Black |
|---|
| Heat Coverage Area | 9' x 10' |
|---|
| Suggested Mounting Heights | 8' to 12' |
|---|
| Amps | 20.8 |
|---|
| Box Weight | 14 |
|---|
| Fuel Type | Electric |
|---|
| Warranty | 3 Years Warranty |
|---|
| Country of Origin | Made in the USA |
|---|
| Certification | UL Listed |
|---|
Model CD5024BL4 Features:
- 5,000 Watts
- 20.8 amps
- 240 Volt
- Traditional Decorative Fascia
- Available in 208 volts (#CD5028BL4), 277 volts (#CD5027BL4), and 480 volts (#CD5048BL4)
- 39" Length x 8" Width
- 6" Stainless Steel Black Mounting Kit Included
- UL Listed for Outdoor or Indoor use
- Quartz Element with approximately 5,000 hours of use
- 0 to 60° Mounting Angle
- Minimal Maintenance Costs
- 3 Year Warranty
- Made in the USA
Clean Energy, For Continuous Use
Infratech elements are rated for near 5,000 hours of continuous use. In many cases, you will find yourself enjoying your heater for years before a replacement would be necessary. Always refer to the CD-Series manual for specific instructions, and be sure to disconnect the power to your heater before attempting to change an element.
