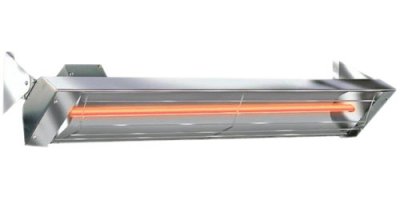

The SL-series Slimline single-element heaters are sleek and streamlined. With crisp, modern styling, an anodized aluminum housing and narrow profiles, Slimline heaters virtually disappear into the surrounding decor, and are capable of withstanding years of outdoor use. Slimline heaters are ideal for surface mount applications up to ten feet, and feature a T-slot for flexible mounting options using the included brackets. Available in 3000-watt models. As these units operate on a medium wave infrared beam, they are unaffected by breeze and are ideal for cafes, pubs, clubs and domestic installations.
The SL-Series housing body and mounting brackets come standard with a stainless hue anodized aluminum finish. These components can also be ordered in a Bronze finish to better coordinate with your interior or exterior environment.
Our low profile heaters are suitable for indoor and outdoor installations, and offer a pleasing, streamlined look due to lower clearance requirements. Infratech heaters may be mounted to a wall or ceiling, or may be pole mounted.
| Infratech 60" Slimline Patio Heater SL3024 Specifications |
|---|
| Heating Element | SlimLine Quarts Element |
|---|
| Watts | 3000 |
|---|
| BTU's | 10240 |
|---|
| Volts | 240 |
|---|
| Amps | 12.5 |
|---|
| Heating Diameter | 8'x8' |
|---|
| Mounting Height | 7'-9' |
|---|
| Clearance to Combustible Materials | 6" behind heater, 18" from sides and ends of heater, 36" in front of heater |
|---|
| Emitter Life | Up to 5000 hours |
|---|
| Finish | Stainless hue anodized aluminum |
|---|
| Length | 60" |
|---|
| Width | 4.75" |
|---|
| Depth (w/ Mount Brackets) | 9-3/8" |
|---|
| Reflector Diameter | 38" concave internal reflector |
|---|
| Certifications | UL listed |
|---|
| Warranty | 1 year factory warranty for Residential or Commercial use |
|---|
| Shipping Details | 42" x 9" x 8" |
|---|
| Shipping Weight | 17 lbs. |
|---|
Infratech 60" Slimline Patio Heater SL3024 Features:
- Maximum efficiency
- Suitable heat for indoors and outdoors
- Provides spot heat to exposed areas
- Simple low cost installation
- Available in stainless hue anodized aluminum finish
- UL listed
- Optional Heat Regulator for desired heat control
- One heat regulator operates one unit
- No moving parts, low maintenance
- One year factory warranty
- Heats a 8 x 8 for area when mounted 7 to 9 feet high
- 3000 watts with 240 volts, 12.5 Amps
- Electric Infrared Heaters are not affected by wind. No open flame burner
- No emissions produced, making it easy to install underneath canvas or wood
- Equipped with 6" Mounting Kit
- Minimal Maintenance Required
- Electric Heaters are energy efficient
- Low Operating Cost
- Infratech produced with pride in the USA
- Can be mounted to a wall, ceiling, or on a freestanding pole (not included)
- Includes wall or ceiling mounting bracket.
