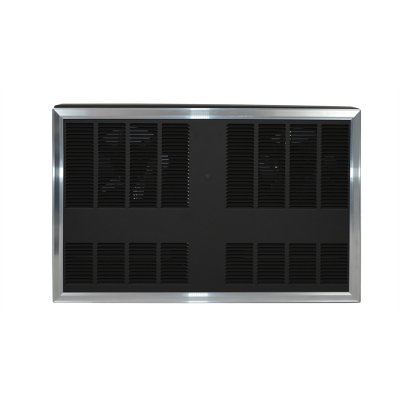

8000W, 240V 3 Phase Heavy-Duty Fan Forced Wall Heater

• Furnish and install Heavy-Duty Forced Air wall heaters, where specified. The heaters shall be constructed of a heavy 18 gauge steel housing with an extruded Aluminum frame.
• The rough-in dimensions are 30 1/2" Wide x 19 1/2" High x 4" Deep.
• The units shall be available in ratings of 6000, 8000, & 9600 watts at 208 volt (1 or 3), 240 volt (1 or 3), 277 volt (1), & 480 volt (1 or 3).
• The heaters shall have (2) low-speed 600 RPM, 4-pole motors which drives vane axial blowers to deliver a quiet 350 CFM of down flow air.
• The two heating elements shall be of the sealed tubular type with large, parallel steel fins for quick heat transfer. Units shall have as a standard, a manual reset, a thermal overload cut-off for added safety, fan delay switch, and manual disconnect switch.
• Optional built-in tamper proof thermostat which shall be calibrated to provide a range of 0°F. to 110°F.
• An optional 24 volt control relay* shall be installed for control from Building Management System (BMS). Optional accessory shall include a semi-recess mounting adapter and a 16 gauge Heavy Duty Grille.
• All heaters shall be listed by ETL.
• The heating element shall be supplied with a manufacturer’s 1-year limited warranty.

Features :

• Dual vane axial fan blades
• Lockable disconnect switch
• Automatic purge
• Manual reset thermal limit
• Low voltage control
• Steel block fin elements
• Optional built in thermostat with 40° - 110°F range
• Heavy duty 18 ga. powder coated grille
• Extruded aluminum trim frame, no visible screws
• 4" Surface mounting frame included (3340EX32)
• Rough in dimensions 30-1/2 in wide x 19-1/2 in high x 4" deep
• When ordered without thermostat, terminal block included for field connection of remote low voltage single stage thermostat
• Optional BMS relay requires field supplied 24V source
• Optional 2" semi recess frame available (3340EX16)
• ETL-CUS Listed
• Made in U.S.A.
