HW

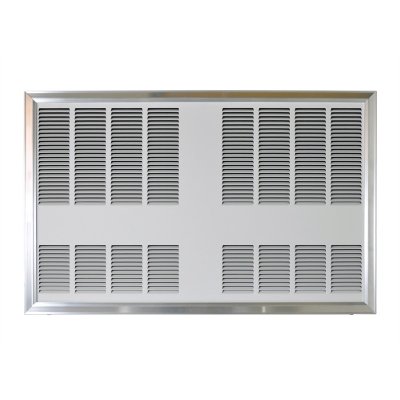

9600W, 240V 3 Phase Heavy-Duty Fan Forced Wall Heater, White
TPI

9600W, 240V 3 Phase Heavy-Duty Fan Forced Wall Heater, White

K3349W
$5,279.00
$3,378.56
$1,900.44 (36%)
Please select from the Options below
Field Installed Accessories
SKU: K3349W
BTU /hr.: 32765
Fuel Type: Electric
Volts: 240
Color: White
Brand: TPI

9600W, 240V 3 Phase Heavy-Duty Fan Forced Wall Heater, White

  • Furnish and install Heavy-Duty Forced Air wall heaters, where specified. The heaters shall be constructed of a heavy 18 gauge steel housing with an extruded Aluminum frame.
  • The rough-in dimensions are 30 1/2" Wide x 19 1/2" High x 4" Deep.
  • The units shall be available in ratings of 6000, 8000, & 9600 watts at 208 volt (1 or 3), 240 volt (1 or 3), 277 volt (1), & 480 volt (1 or 3).
  • The heaters shall have (2) low-speed 600 RPM, 4-pole motors which drives vane axial blowers to deliver a quiet 350 CFM of down flow air.
  • The two heating elements shall be of the sealed tubular type with large, parallel steel fins for quick heat transfer. Units shall have as a standard, a manual reset, a thermal overload cut-off for added safety, fan delay switch, and manual disconnect switch.
  • Optional built-in tamper proof thermostat which shall be calibrated to provide a range of 0°F. to 110°F.
  • An optional 24 volt control relay* shall be installed for control from Building Management System (BMS). Optional accessory shall include a semi-recess mounting adapter and a 16 gauge Heavy Duty Grille.
  • All heaters shall be listed by ETL.
  • The heating element shall be supplied with a manufacturer�s 1-year limited warranty.

    Features :

  • Dual vane axial fan blades
  • Lockable disconnect switch
  • Automatic purge
  • Manual reset thermal limit
  • Low voltage control
  • Steel block fin elements
  • Optional built in thermostat with 40° - 110°F range
  • Heavy duty 18 ga. powder coated grille
  • Extruded aluminum trim frame, no visible screws
  • 4" Surface mounting frame included (3340EX32)
  • Rough in dimensions 30-1/2 in wide x 19-1/2 in high x 4" deep
  • When ordered without thermostat, terminal block included for field connection of remote low voltage single stage thermostat
  • Optional BMS relay requires field supplied 24V source
  • Optional 2" semi recess frame available (3340EX16)
  • ETL-CUS Listed
  • Made in U.S.A.
Model Number K3349-W
Agency Rating ETL-CUS
KW 9.6
Amp 24.7
Voltage 240
BTU 32765
Phase 3
Color White
Weight (lbs) 68
