HW

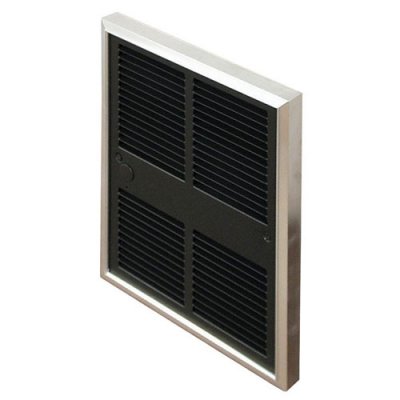

Fan Forced Wall Heater
TPI

Fan Forced Wall Heater

F3317T2RPW
Price $819.00 $524.16
Please select from the Options below
Factory Installed Controls
SKU: F3317T2RPW
BTU /hr.: 16380 BTU
Fuel Type: Electric
Volts: 208 V
Color: White
Brand: TPI
Resources

Fan Forced Wall Heater TPI F3317T2RPW Resources:

Fan Forced Wall Heater TPI F3317T2RPW Specification

Fan Forced Wall Heaters - 4800W Fan Forced Wall Heater w/o Summer Fan Switch & w/ & DP Thermostat - TPI F3317T2RPW - 16380 BTU

TPI presents model F3317T2RPW , the perfect for all your heating needs. This 4800W Fan Forced Wall Heater w/o Summer Fan Switch is available in beautiful white finish constructed using 18 ga. Steel front. This heater provides you 15 3/8" wide x 20 9/64" high grilling dimension to assure even and clean heating.

Fan Forced Wall Heater TPI F3317T2RPW Specifications
UPC686334326513
Max BTU's16380
Wattage4800
Volts208
Max. Amps23
Hot & Cold Fill HosesMeets Energy Star Requirements
Dimensions14-3/16"W x 19-15/16" H x 4" D
Weight22 lbs.

Fan Forced Wall Heater TPI F3317T2RPW Features:

  • Vane axial fan blade - 600 RPM / 175 CFM
  • Rough in dimensions - 14 3/16" wide x 19 15/16" high x 4" deep
  • Grill dimensions - 15 3/8" wide x 20 9/64" high
  • Units with dual wattage, factory wired to highest wattage.
  • Watts selectable at time of installation. Factory wired to higher wattage.
  • Powder coated 18 ga. steel front
  • Automatic reset thermal limit
  • Steel block fin element
  • Weight 22 lbs.
Accessories
Additional Back Can / Rough-in Box
TPI
Price $164.00 $104.96
Surface Mounting Frame
TPI
Price $142.00 $90.88
