HW
Fan Forced Wall Heater
TPI

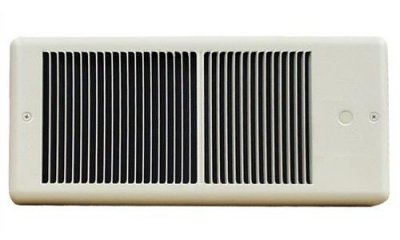

Fan Forced Wall Heater

HF3316T2RPW
Price $797.00 $510.08
Please select from the Options below
Factory Installed Controls
SKU: HF3316T2RPW
BTU /hr.: 6826 - 13648 BTU
Fuel Type: Electric
Volts: 208 - 240 V
Color: White
Brand: TPI
Resources

TPI Fan Forced Wall Heater HF3316T2RPW Resources:

TPI Fan Forced Wall Heater HF3316T2RPW Specifications

White Fan Forced Wall Heater, TPI HF3316T2RPW, without Summer Fan Switch and with Double Pole Thermostat comes with 4000-3000 / 2000-1500 Watts of power, 13648 / 6826 BTU and powder coated 18 ga. steel front. This energy-efficient unit is designed using the highest quality materials and components to provide the user with trouble free service at lower costs.

Fan Forced Wall Heater - TPI HF3316T2RPW Specifications
BTU13648 / 6826
Wattage4000-3000 / 2000-1500 W
Voltage240 / 208 V
Product Weight22 Lbs.
Product Dimensions14-3/16"W x 4"D x 19-15/16"H
CFM175
Amperage16.8-14.4 / 8.3-7.2
UPC686334326551

Fan Forced Wall Heater - TPI HF3316T2RPW Features:

  • Powder coated 18 ga. steel front
  • Automatic reset thermal limit
  • Steel block fin element
  • Vane axial fan blade - 600 RPM
  • 50 - 90 deg. F temperature range
  • Grill dimensions - 15-3/8" wide x 20-9/64" high
  • Unit with dual wattage
  • Factory wired to highest wattage
  • Watts selectable at time of installation
  • cETLus listed
