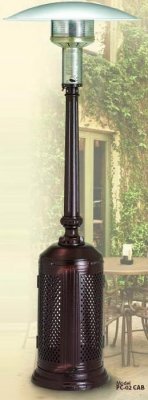

PC02CAB Infrared Outdoor Patio Heater is an apt mixture of both traditional elements and aluminum components that are integrated into the latest safety oriented model. Such a patio heater is protected with an antique bronze polyurethane powder coating, which is applied electro statically. The finishing texture of this model enhances the beauty of your outdoor setting. This Infrared Outdoor Patio Heater does not use any valuable energy for heating rather works efficiently with infrared radiant heat.
| Comfort Patio Heater - PC-02 CAB |
| Overall Height | 92 inches (including installed reflector) |
| Weight | 95 lbs including reflector. Tank with fuel weighs additional 40 lbs. |
| Reflector | One piece anodized aluminum- 34 inch diameter |
| Major Components | Solid cast aluminum post, socket, and tank enclosure. Stainless steel burner head, solid feed line, and heavy duty round cast iron base for easily moving heater. |
| Ignition | “Sure Start” push button Piezo ignition (no battery required) |
| Burner Material | Commercial grade series 403 stainless steel |
| Emitter Grid | Commercial grade series 403 stainless steel |
| External Fasteners | Stainless steel |
| BTU Input/Hour | 40,000 BTU |
| Base Diameter | 19.5 inches (weight 40 lbs) base solid cast iron tank/fuel weighs additional 40 lbs. Tank is not ncluded. |
| Circle of Heat | Varies 10 to 15 ft (3.2 to 4.2 meters), based on wind conditions, wind chill factor, location, and wind protection. We do not recommend using heater in windy conditions, in rainy conditions, or snow. |
| Clearances | Minimum clearance from combustibles is 24 inches from top of reflector 24 inches from sides of reflector. |
| Burn Time | Approximately 10 hours on high setting |
| Gas Pressure | 11 inches water column for propane (LP reg required and included). |
| Gas Supply | The PC-02 CAB is designed and UL approved for propane fuel only. |
| Safety System | 100% safety pilot and safety shut-off cylinder must be supplied that conforms to current standard and has OPD (overfill protection device) included (tank optional). |
| Certifications | Underwriters labs (UL) US and Canada. In the US model PC-02 CAB heater complies with CSA 5.90 (3rd Edition). In Canada heater complies with CAN 1-2.23-M82 outdoor patio heater standard. |
| Warranty | One year limited |
| Installation | Installation must conform to your local codes and ordinances. If you have any questions as to your local regulations or possible restrictions to using propane fired outdoor heaters you should check with your local fire, code, or safety officials. We will not accept any heaters for return that cannot be used due to your local building or safety standards. It is the responsibility of the purchaser to check their local codes and fire restrictions or ordinances. Not for use inside any enclosed space, tents, recreational vehicles, prefab enclosure, boats, or other moving objects. |
