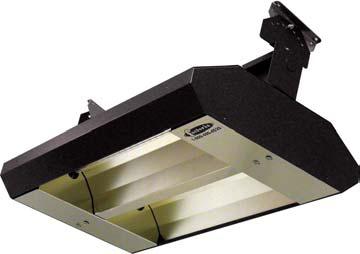

Multi-T-Mount Infrared Heater
Fostoria

Multi-T-Mount Infrared Heater

46290TH480V
Price $1,711.00 $1,095.04
SKU: 46290TH480V
BTU /hr.: 24915 btu
Fuel Type: Electric
Volts: 480 V
Color: Brown
Brand: Fostoria

Commercial / Warehouse Heaters - Mul-T-Mount Quartz Electric Infrared Heater - Fostoria 462-90-TH-480V- 24,915 BTU - 480 V

Introducing Mul-T-Mount 2 Lamp Electric Infrared Heater with 2 clear quartz lamps and 24,915 BTU. The Fostoria -462-90-TH-480V models are best used in for patio areas, bus shelters, airport terminals, workstations, lobby entrances, etc. This infrared heater housing comes in either a 20-gage Stainless Steel or a Galvannealed Steel painted with a high temperature powder coated brown finish. This infrared heater provides a 90 degree symmetrical reflector pattern. The unit can be tilted 0 to 45° horizontally with the help of a built-in surface mounting bracket. UL / C-UL listed for suspended, totally exposed outdoor, and indoor comfort heating applications, it has a gold anodized one-piece reflector that offers various distribution of infrared heat and operates on single-phase. Infrared heating systems heat people and objects to a desired temperature level and creates a safe, clean atmosphere. This infrared heater is only available in 480 V.

Mul-T-Mount Electric Infrared Heater - Specifications
Voltage480V
Type Indoor / Outdoor
BTU's24,915
KW7.3
Phase1
ColorBrown
Reflector Patterns90 degree symmetrical
No. of Lamps2 Clear Quartz
Dimension 46" L x 15" W x 10-7/8" H
Weight 32 lbs.
Mounting Suspended, Recessed and Totally Exposed Outdoors
Agency Compliance UL, CUL
Repl. Heating Element630-36489

Mul-T-Mount Electric Infrared Heater Features :

  • 0 to 45° tilt
  • UL / C-UL listed
  • Includes 2 clear quartz lamps
  • 24,915 BTU
  • Available in 480 V
  • Housing materials: Brown coated Stainless Steel
  • Operates on single-phase operation
  • Zone control flexibility
  • Recommended mounting heights - Indoor: 12' - 18'
  • Highly engineered and proven
