HW
Packaged Duct Heater
TPI

Packaged Duct Heater

PD4516303
Price $4,298.00 $2,750.72
SKU: PD4516303
Fuel Type: Electric
Volts: 240 V
Color: Galvanized Steel
Brand: TPI
Resources

TPI Packaged Duct Heater PD4516303 Resources:

TPI Packaged Duct Heater PD4516303 Specifications

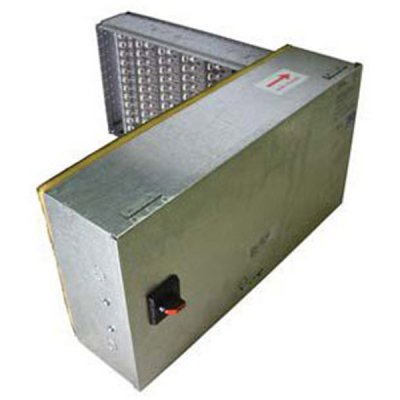

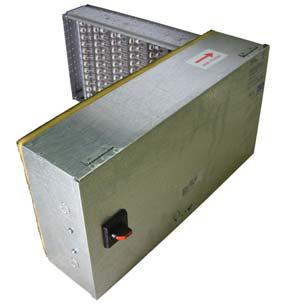

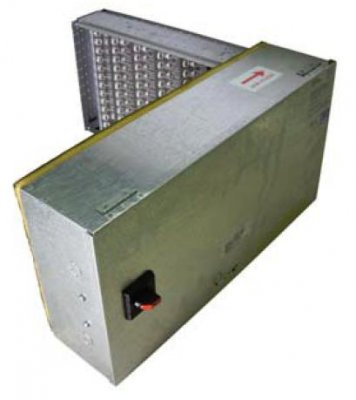

We present 45KW three phase package duct heater, TPI PD4516303, that uses 208V power supply. This unit has galvanized steel compartment with 1/2" fiberglass insulation & hinged cover. This unit includes 24 volt step down control transformer and definite purpose magnetic contactor. It has door interlock disconnect switch and differential pressure fan inter-lock switch.

45 KW Packaged Duct Heater TPI PD4516303 Specifications
Power45 KW
Voltage240
Phase3
Duct Height16" A
Duct Width30" W
Dimensions9-1/8" C x 7-1/2" E x 43" M
Amperage108.4
Control Step3
UPC686334617376
Weight80 Lbs.

45 KW Packaged Duct Heater TPI PD4516303 Features:.

  • Galvanized Steel Element Rack - Always 1" shorter than duct height and 1/2" shorter than duct width to allow insertion clearance
  • Galvanized Steel Compartment with 1/2" fiberglass Insulation & Hinged Cover
  • Door Interlock Disconnect Switch
  • Primary Automatic Reset Temp Limiting Control
  • Load Carrying Secondary over Temperature Protective Device
  • Definite Purpose Magnetic Contactor
  • Differential Pressure Fan Inter-lock Switch
  • Step Down Control Transformer / 24 volt
  • Permanently Attached Wiring Diagram on inside of Terminal Compartment Cover
