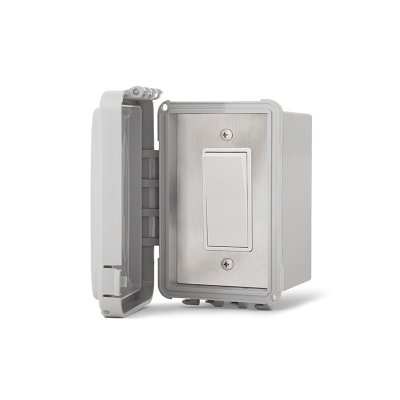

Single On/Off Switch Surface Mount & Gang Box 20 Amp Per Pole
Weatherproof Box - On/Off Switch
This simple On/OFF switch can be used to control your W Series heater. This switch comes with a weatherproof box, stainless steel faceplate, and gang box for surface mount exposed exterior locations.
We offer an assortment of value controls, to help you enjoy the efficient ease of use that is compatible with any budget.
#14-4420 Dimensions and Features:
- Weatherproof Box: 4 9/16" h x 2 3/4" w x 2" d
- SS Plate: 4 3/8" h x 2 5/8" w
- Weatherproof Cover: 5 1/2" h x 3 3/4" w x 2 3/4" d (Tab on covers extends 1/4")
- Threaded Knock Out: 1/2"
- Range: 120/277 VAC
- Recommended not to exceed:
- 208/220 VAC=3000 Watts Max per Switch
- 240/277 VAC=4000 Watts Max per Switch
- 20 Amps Max Load
- Made in the USA
- 3 Year Warranty
Infrared Heaters
Infrared energy is the most practical way to add warmth to spaces like patios, terraces, verandas, enclosed areas, and in settings where heated air cannot easily be contained or re-circulated.
Infratech's infrared heaters are designed with low clearance requirements and have a minimal visual impact. They blend into most decors and provide a heat where most traditional heaters cannot.
For additional questions about our custom control packages or outdoor heaters,
