HW

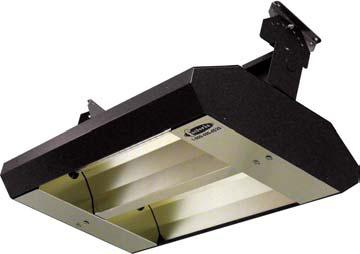

Stainless Steel Mul-T-Mount Infrared Heater
Fostoria

Stainless Steel Mul-T-Mount Infrared Heater

342A60THSS240V
Price $1,743.00 $1,115.52
SKU: 342A60THSS240V
BTU /hr.: 17065 btu
Fuel Type: Electric
Volts: 240 V
Color: Stainless Steel
Brand: Fostoria

Commercial / Warehouse Heaters - Mul-T-Mount Quartz Electric Infrared Heater - Fostoria 342-A60-THSS-240V - 17,065 BTU - 240 V

Introducing Mul-T-Mount 2 Lamp Electric Infrared Heater with 2 clear quartz lamps and 17,065 BTU. Fostoria 342-A60-THSS-240V model is best for use in for patio areas, bus shelters, airport terminals, workstations, lobby entrances, etc. This infrared heater features 20-gage stainless steel finish. It provides a 60 degree asymmetrical reflector pattern. It can be tilted 0 to 45° horizontally with the help of a built-in surface mounting bracket. UL / C-UL listed for suspended, totally exposed outdoor, and indoor comfort heating applications, it has a gold anodized one-piece reflector that offers various distribution of infrared heat and operates on single-phase. Infrared heating systems heat people and objects to a desired temperature level and creates a safe, clean atmosphere.

Mul-T-Mount Electric Infrared Heater 342A60THSS240V - Specifications
Voltage240V
Type Indoor / Outdoor
BTU's17065
KW5
Phase1
ColorStainless Steel
Reflector Pattern60 degree asymmetrical
No. of Lamps2 Clear Quartz
Dimension 33" L x 15" W x 10-7/8" H
Weight 25 lbs.
Mounting Suspended, Recessed and Totally Exposed Outdoors
Agency Compliance UL, CUL
Repl. Heating Element630-25249

Model Series 342 - Spot Heating Application Chart
 Outdoor HeatingIndoor Heating
Recommended Mounting (ft.)10-12 H8-10 H
Coverage of Heater (ft.)14 L x 12 W14 L x 12 W
Watts 30 sq. ft.30 sq. ft.
Temperature Rise Expected15 °30 °

Mul-T-Mount Electric Infrared Heater Features :

  • 5000 Watts
  • Asymmetrical reflector pattern
  • 0 to 45° tilt
  • UL / C-UL listed
  • Includes 2 clear quartz lamps
  • 17,065 BTU
  • Available in 240 V
  • Housing materials: Stainless Steel
  • Operates on single-phase operation
  • Zone control flexibility
  • Recommended mounting heights - Indoor: 12' - 18'
  • Highly engineered and proven
