HW
Washdown Unit Heater
TPI

Washdown Unit Heater

F1F5515T
Price $10,549.00 $6,751.36
Please select from the Options below
Disconnect Switch
SKU: F1F5515T
BTU /hr.: 51200 BTU
Fuel Type: Electric
Volts: 208 V
Color: Stainless Steel
Brand: TPI
Resources

TPI 15KW Single Pole Washdown Unit Heater F1F5515T Resources:

TPI 15KW Single Pole Washdown Unit Heater F1F5515T Specifications

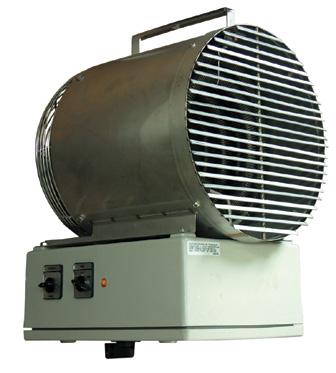

We present you 15KW Single Pole Washdown Unit Heater made by TPI. Model no F1F5515T is made using with corrosion-resistant material that makes the unit ideal for industrial heating applications. This unit has Automatic reset thermal cutout for your safety. It is made with all In-Built controls and safety temperature controls wired in a non-metallic Nema 4x control panel with single-point power connections.

TPI 15KW Single Pole Washdown Unit Heater F1F5515T Specifications
Power15 KW
BTU's51200
Volts208
Phase1
Amps72.1
Control Volts24
Temp Rise68 F
CFM700
Air Throw28'
Weight64 Lbs.
UPC686334713399

TPI 15KW Single Pole Washdown Unit Heater F1F5515T Features:

  • Heavy-duty 304 16 ga. stainless steel shroud and inlet grill
  • Nema 4x non-metallic control panel.
  • 24-volt control.
  • 3-position switch (off-heat-fan)
  • Capillary style thermostat.
  • Automatic reset thermal cutout.
  • Totally enclosed motor.
  • Pilot light (power on indicator)
  • Control panel on bottom of unit for ease of installation and service.
  • Disconnect switch with enclosure door interlock.
  • Front grill rotates to direct airflow
  • Single-point power connection
  • Minimum mounting height is 7' for all units
  • ABS Type Approved
